HMI and Operator Interface Quick Links
UT3 Series
6”, 8" & 10" Model
Uticor Touch Plus
15” Model
Uticor Touchpanel
4”, 6”, 8” & 10” Models
Uticor SE Series
6”, 8” & 10” Models
Uticor Windows CE
6”, 8” & 10” Models
Uticor Windows HMI
10” & 15” Models

UTHMI Products Commmunication Drivers Specifications >

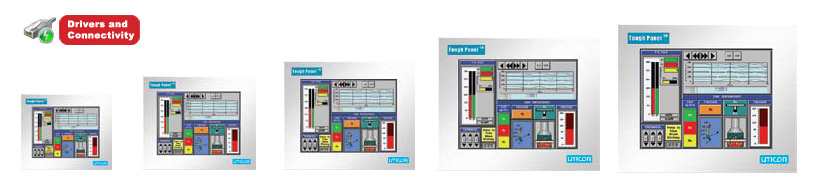

4” TFT Color 6” TFT Color 8” TFT Color 10” TFT Color 15” TFT Color
Choose Operating System
Dedicated Operating System Windows Operating System
• Models: 4", 6", 8", 10"
• Touch Screen Matrix
• Ethernet on option cards
• No USB
• Models: 4”, 6”, 8”, 10”
• Touch Screen Matrix
• Ethernet on SE models
• USB on Ethernet Models
• Models: 6", 8", 10"
• Analog Resistive
• Ethernet Built-in
• USB Built-in
• Models: 10", 15"
• Analog Resistive
• Ethernet Built-in
• 4 USB Ports, including   programming
• MicroSD Compatible



• Models: 15"
• Analog Resistive
• Ethernet Built-in
• 4 USB Ports, including   programming
• MicroSD Compatible

• Models: 6", 8", 10"
• Analog Resistive
• Ethernet Built-in
• 2 USB Ports
• 2 Serial Ports   (RS232/422/485
• MicroSD for Data Logging
• 65K Colors



Operator Interface / HMIs at a Glance
Feature Uticor Touchpanel Uticor SE Series HMI UT Windows® CE HMI UT Windows® HMI UT3 Series

Backlight/Life

Regular: CCFL/50K hrs @25°C
Durapanel: WhiteLED 75K hrs @55°C

White LED/75K hrs @55°C

Regular: CCFL/50K hrs @25°C
Durapanel: WhiteLED 75K hrs @55°C

White LED/75K hrs @55°C

White LED/75K hrs., 400 nits

Serial Drivers

Ethernet built-in

Built-in Ethernet
Driver

With adder for universal ethernet or network card

10/100Mbps

10/100Mbps

1 Gb - 10/100/1000Mbps

10/100 Mbps.

USB Data store,
Program back-up PLC

No

√ with ethernet SE or SU models

Touch Response Time

Ultra fast <0.5 sec

Fast 1 sec

Fast 0.75 sec

Fast 0.75 sec

Fast 1 sec.

Real Time Clock,
Battery back-up

Yes

√ with ethernet SE model

Yes

Yes

Yes

Flash Card back-up

Yes

USB

Yes

Yes, Micro SD Compatible

Yes, Micro SD Compatible

Operating System

Dedicated

Dedicated

Windows CE 4.2

Windows 7 Embedded

Dedicated

Remote Monitor &
Control

Serial port or add-on RMC card

√ with ethernet SE model

√ Ethernet port

√ Ethernet port

√ Ethernet port

Network cards like DH+/RIO

√

NO

√

√
