Ideal for Industrial Applications
•

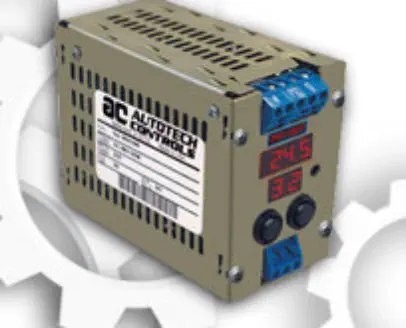

Compact, DIN Rail Mount Power Supplies with LED
Display
•
Instant read-out of: Output Voltages and Current
•
Power supplies available in 30W, 60W, 90W, 120W
and 240W models
•
Voltage adjustable between 23-27V for 30W, 60W,
and 90W units or adjustable between 23-24.5V for
120W and 240W units
LED Display
The PowerSupply has a 3-digit LED display for output
voltage and 2-digit LED display for output current.
The PowerSupply also has maintenance timer
functions, showing hours of use and expected
lifespan based on usage, functions that are
particularly valuable to schedule replacement before
an outage occurs. (Electrolytic capacitors in a
switching power supply have limited life, depending
upon current and temperature.)
Easy Installation and Maintenance
A pre-failure warning alarm can go to a stack light or
other device accepting the output signal. Other
attributes include DIN mount compact metal housing
at 3.1 in. x 2 in. x 4 in. deep, U.S. manufacturing, and
plug-in connectors for easy maintenance.
©2025 Uticor. All rights reserved. All Product names, trademarks and registered trademarks are the
property of their respective manufacturers or legal holders.
Uticor disclaims any proprietary interest in the marks or names of others.
Model
AC-Input Voltage
Typical Input Current at Full Load
Max. Output
Power
Output Volt/Current
Output Voltage
Range
@ 115VAC
@ 230VAC
30 W Unit
Universal Input 85 to 264
VAC
47 - 63 Hz
0.65A
0.35A
30 Watt
24VDC/1.25A
23 - 27 Volts
60 W Unit
1.15A
0.65A
60 Watt
24VDC/2.5A
90 W Unit
1.55A
0.85A
90 Watt
24VDC/3.75A
120 W Unit
Input 90-
135VAC,
50 - 60 HZ
Input 180-
270VAC,
50 - 60 HZ
1.84A
1.0A
120 Watt
24VDC/5.0A
23 - 24.5 Volts
240 W Unit
Input 100-
135VAC,
50 - 60 HZ
Input 200-
270VAC,
50 - 60 HZ
3.5A
1.8A
240 Watt
24VDC/10.0A

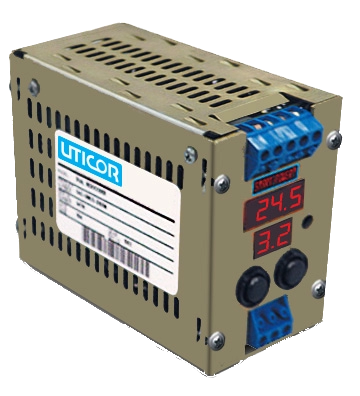

Uticor SmartPower Supply
The Uticor SmartPower Supply is a high-efficiency industrial power source designed for reliability and performance. It features an LED status indicator for quick diagnostics, ensuring easy monitoring of power conditions. With wide input voltage tolerance and surge protection, it provides stable and uninterrupted power in harsh environments. Its compact, DIN-rail mountable design allows for easy installation, while high energy efficiency reduces heat generation and operational costs.
©2025 Uticor. All rights reserved. All Product names, trademarks and registered trademarks
are the property of their respective manufacturers or legal holders.
Uticor disclaims any proprietary interest in the marks or names of others.
Ideal for Industrial Applications
•
Compact, DIN Rail Mount Power Supplies with LED Display
•
Instant read-out of: Output Voltages and Current
•
Power supplies available in 30W, 60W, 90W, 120W and 240W models
•
Voltage adjustable between 23-27V for 30W, 60W, and 90W units or
adjustable between 23-24.5V for 120W and 240W units
LED Display
The PowerSupply has a 3-digit LED display for output voltage and 2-digit LED
display for output current. The PowerSupply also has maintenance timer
functions, showing hours of use and expected lifespan based on usage,
functions that are particularly valuable to schedule replacement before an
outage occurs. (Electrolytic capacitors in a switching power supply have
limited life, depending upon current and temperature.)
Easy Installation and Maintenance
A pre-failure warning alarm can go to a stack light or other device accepting
the output signal. Other attributes include DIN mount compact metal
housing at 3.1 in. x 2 in. x 4 in. deep, U.S. manufacturing, and plug-in
connectors for easy maintenance.
Model
AC-Input Voltage
Typical Input
Current at Full
Load
Max.
Output
Power
Output
Volt/
Current
Output
Voltage
Range
@
115VAC
@
230VAC
30 W
Unit
Universal Input 85
to 264 VAC
47 - 63 Hz
0.65A
0.35A
30
Watt
24VDC/
1.25A
23 - 27
Volts
60 W
Unit
1.15A
0.65A
60
Watt
24VDC/
2.5A
90 W
Unit
1.55A
0.85A
90
Watt
24VDC/
3.75A
120 W
Unit
Input
90-
135VAC,
50 - 60
HZ
Input
180-
270VAC
,
50 - 60
HZ
1.84A
1.0A
120
Watt
24VDC/
5.0A
23 -
24.5
Volts
240 W
Unit
Input
100-
135VAC,
50 - 60
HZ
Input
200-
270VAC
,
50 - 60
HZ
3.5A
1.8A
240
Watt
24VDC/
10.0A
Uticor SmartPower Supply
The Uticor SmartPower Supply is a high-efficiency industrial power source designed for reliability and performance. It features an LED status indicator for quick diagnostics, ensuring easy monitoring of power conditions. With wide input voltage tolerance and surge protection, it provides stable and uninterrupted power in harsh environments. Its compact, DIN-rail mountable design allows for easy installation, while high energy efficiency reduces heat generation and operational costs.
