TouchPLC^TM

Free Flow Ladder on Screen
"Unprecedented Power in a Single Compact Machine Control..." (Patent Pending)

This new innovation from Uticor fills a long desired wish of many control engineers who wanted to have the HMI panel on the machine not only provide a graphical user interface for machine control, but also display the ladder logic on the HMI screen itself. It would also negate the need for two software packages, two databases to maintain for one program, excessive panel wiring and reduce the size of the control cabinet in the process.

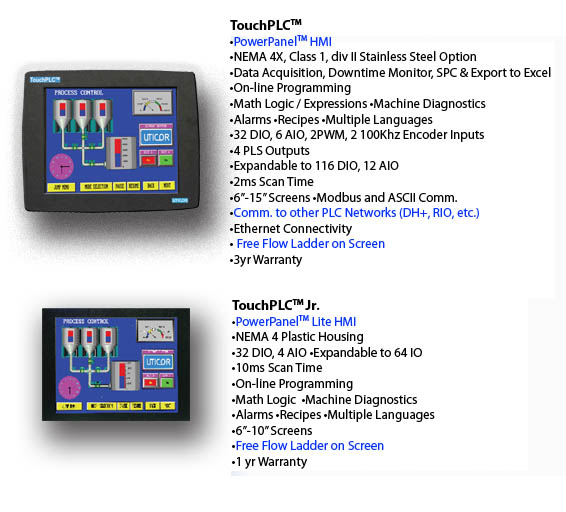

Two models are offered TouchPLC and TouchPLC Jr. TouchPLC uses the super enhanced PowerPanel as its HMI where as TouchPLC Jr. uses the PowerPanel Lite as its HMI.

TouchPLC PowerPanel HMI NEMA 4X, Class 1, Div II Stainless Steel Option Data Acquisition, Downtime Monitor, SPC and Export to Excel On-line Programming Math Logic / Expressions, Machine Diagnostics Alarms, Recipes, Multiple Languages 32 DIO, 6 AIO, 2PWM, 2 100Khz Encoder Inputs 4 PLS Outputs Expandable to 116 DIO, 12 AIO 2ms Scan Time 6"-15" Screens Modbus and ASCII Communications Communications to other PLC Networks (DH+, RIO, etc.) Ethernet Connectivity Free Flow Ladder on Screen 3 Year Warranty

TouchPLC Jr. PowerPanel Lite HMI NEMA 4 Plastic Housing 32 DIO, 4 AIO, Expandable to 64 IO 10ms Scan Time On-line Programming Math Logic, Machine Diagnostics Alarms, Recipes, Multiple Languages 6"-10" Screens Free Flow Ladder on Screen 1 Year Warranty

Free Flow ladder on Screen (Patent Pending)

The TouchPLC family has a unique feature of displaying the ladder logic rungs, fully commented, and the status of all logic elements (true or false) right on the HMI screen. In addition the TouchPLC also has the ability to force bits right from the HMI screen. This gives Uticor unprecedented power to reduce downtime and improve productivity on the plant floor.

The concept of this patent pending Free Flow Ladder Logic is to create less restricted rungs of logic. This saves the user rung space and valuable scan time. Below you will see an example of Free Flow Ladder Logic. As you can see, the Free Flow Logic allows logic to be placed and connected anywhere in the rung rather than creating a new rung. This allows the user to spend more time on other parts of the machine development and let the CPU do more of the work of solving the logic.

Traditional Ladder Logic vs. Free Flow Ladder Logic

Easiest to use Integrated & FREE Programming Software

This integrated FREE Programming software is the easiest to program for both HMI and PLC functions. It has an "Auto Associate" feature that allows the ladder elements to be associated with their corresponding buttons, objects, indicators, or bitmaps. In addition you have only one program to attend to and no longer have to maintain two separate programs, one in the HMI and the other in the PLC. It is estimated that this feature alone can save the cost of the entire TouchPLC in a single episode of even a minor change in the machine program on the plant floor.



Connectivity on Other PLC Networks

The TouchPLC even though designed for relatively small to medium I/O applications (up to 128 I/O), has unbelievable connectivity to all the major control networks, as shown below.
