Master Marquee with Toughpanel HMI CPU
- Read, Calculate, Compare PLC tags, Perform Complex Math Operations and Generate Alarms
- Industrially Robust, NEMA 4X, Class I, Div II, Choice of Aluminum or Stainless Steel Marquees
- Tough yet Energy Efficient
- And More...

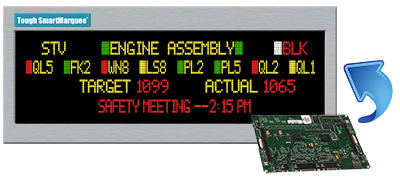

Master Tough SmartMarquees has a built-in Toughpanel HMI CPU which allows to read, calculate, compare PLC tags and perform complex math operation, generate alarms.
Message Database
With Tough SmartMarquee, messages displayed can
be Stationary, Scrolling or Blinking based on the
embedded codes in an ASCII string. These messages
along with their display characteristics are stored
inside the Tough SmartMarquee. The number of
mesages stored are practically unlimited. Messages
can be imported from and exported to an Excel spread
sheet.
Alarms & Alarm Database
Tough SmartMarquees offer a sophisticated Alarm
system. It allows you to monitor events (bits), and
values (registers). The values can be monitored for a
variety of conditions (=, >, <, in/out of range). The
alarms can be selectively displayed, printed and/or
logged. The alarms are also stored in a seperate alarm
database which can also be imported from or exported
to Excel spread sheet.
Math-logic/Multi-function
Buttons, Overlapping Objects
Master Tough SmartMarquees offer a sophisticated control,
called the Multi-function Object. As the name implies,
this Object allows you to perform multiple functions,
including Mathematical and Logical operations on PLC
data. For example, you can set/reset multiple bits & transfer
constants or variables
or expressions to tags.
Remarkably, this Benefit
allows a user to perform
up to 20 operations
with one Object. Master
Tough SmartMarquee
also allows you to
perform these Multiple
functions under the
PLC control a very
useful feature to offload
mathematical & logical
computations from
the ladder logic to the
Marquee.
Connects to most Major PLCs and
Networks
Uticor Tough Master Marquees connect to Allen Bradley, Modicon,
Siemens, Mitsubishi, DH+, Profibus, etc. Essentially all drivers
serial as well as Network that are available on Toughpanels are also
incorporated into master Tough SmartMarquees.
Simple Software
Master Tough SmartMarquees are programmed
using an easy, Windows based Programming software. This
software contains message import/export capabilities to other
applications.

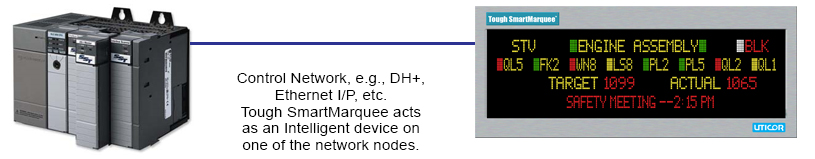

Marquee Configurations
Master Marquees STORE user-programmed messages. These marquees have PLC interfaces, and INITIATE
communications with PLCs to monitor various PLC registers. Based on PLC register values, and programmed
messages, Master Marquees display messages. Master Marquees can also drive Slave Marquees.
